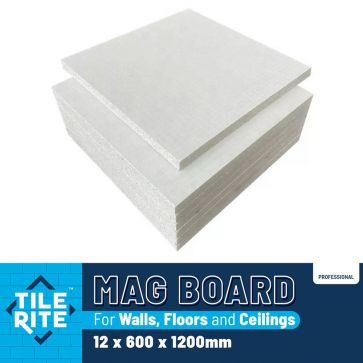

12MM MAGBOARD 1200x600x12MM

Product Code: MAG211


PRODUCT DESCRIPTION
MAGBOARD

  • The perfect replacement for plywood & other wood-based sheets as a strong and stable background on which to tile. Holds up to 100kg per m2.
  • MAGBOARD is a green building product. The production ensures minimal energy consumption and a very low impact on the environment, and is 100% recyclable.
  • Water and mould resistant, will not swell rot or degrade.
  • Lightweight & easy to cut making preperation time faster.
  • A1 fire rated and ideal for use with underfloor heating.

SELL TILE RITE PRODUCTS

If you are retailer or wholesaler and would like to stock Tile Rite or Plasplugs products, then please fill in and fax or email back this form CLICK HERE

6MM MAGBOARD 1200x600x6MM

6mm Magboard 1200x600x6mm

Product Code: Variants

12MM MAGBOARD 1200x600x12MM

12mm Magboard 1200x600x12mm

Product Code: Variants

FIBERGLASS JOINT TAPE 50MMX20M

Fiberglass Joint Tape 50mmx20m

Product Code: TBT536

Technical Information

ORDER CODE THICKNESS LENGTH WIDTH DESCRIPTION BARCODE PALLET QTY
MAG209 6MM 1200MM 600MM MAGBOARD TILE BACKER BOARD 5019788002905 160
MAG210 10MM 1200MM 600MM MAGBOARD  TILE BACKER BOARD 5019788002101 96
MAG211 12MM 1200MM 600MM MAGBOARD TILE BACKER BOARD 5019788002118 80



Q. Do i need to prime MAGBOARDS before tiing?

A. Prior to painting, plastering or tiling, the boards should be coated on receiving faces and edges with an acrylic based primer.

Q. How Do I Fix Magboards to framework or masonry walls?

A. Install horizontally in a staggered pattern. Use the rough side to tile onto.  For timber framework use (alkali resistant) Stainless Steel, Hot dipped galvanised screws, or zinc plated screws.  Screws must have a counter sinking heads.  Never over screw keep heads flush with board.  Ensure fixings are a minimum of 20mm from the bottom and 15mm form the sides at 300mm intervals.  On masonry use high strength cartridge adhesive to provide initial adhesion then fix with 6mm x 60mm s/steel screws into wall plugs.

Q. How Do I Fix Magboards to Floors?

A. Stagger joints of board. Do not put board joint directly over substrate joint.  Lay rough side up for tiling. Leave a 3mm gap between floor & Wall edges and board joints. For Solid floors apply flexible tile adhesive to substrate using a 6mm notch trowel. For timber floors, fix the boards at maximum 300mm centres using countersunk (alkali resistant screws).

Q. Can I Use MAGBOARDS in a wetroom?

A. Yes, but it must be primed and tanked with an appropriate tanking kit.

Q. Why should i use jointing tape? and what should i use?

A. The joint tape helps tie the boards together, helping to disperse any movement of the substrate, which will prevent tiles popping or cracking along the seams. Use a fibreglass reinforcement tape and apply latex modified adhesive over the tape to fully embed, filling all joints fully.

Q. What can be applied over the boards?

A. You can apply Tiles, Paint, Plaster & Wallpaper over the boards.  Ensure you carry out your own tests and prime as required.
